1.9 Inch 170×320 RGB TFT Display 12PIN 24Pin 30PIN MIPI SPI ST7789 LCD Module Panel with Customizable CTP From Factory
Packaging and delivery
Selling Units
Single item
Single package size
13X8X9 cm
Single gross weight
0.5 kg

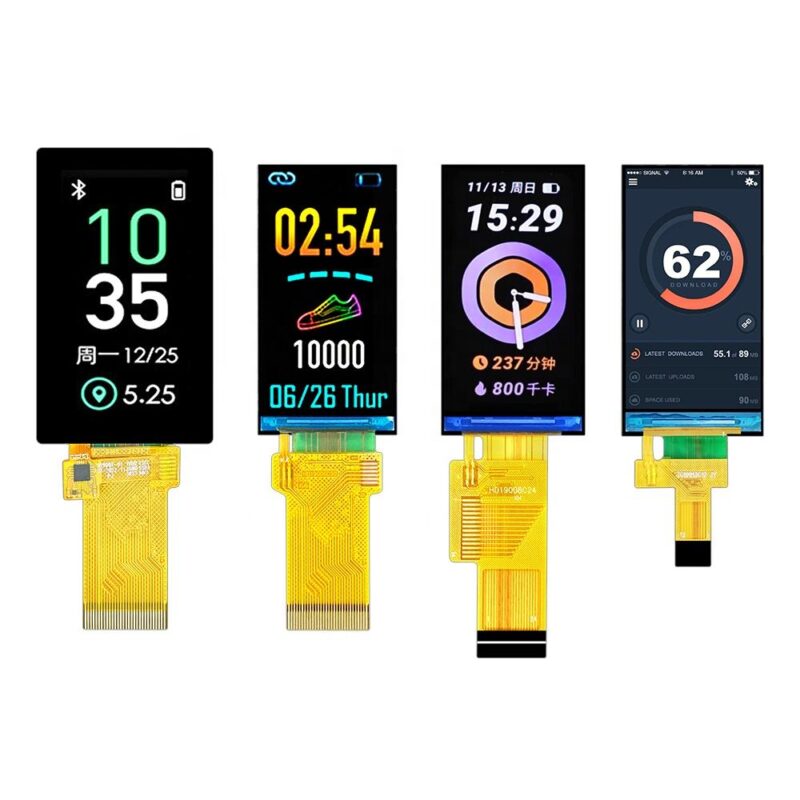

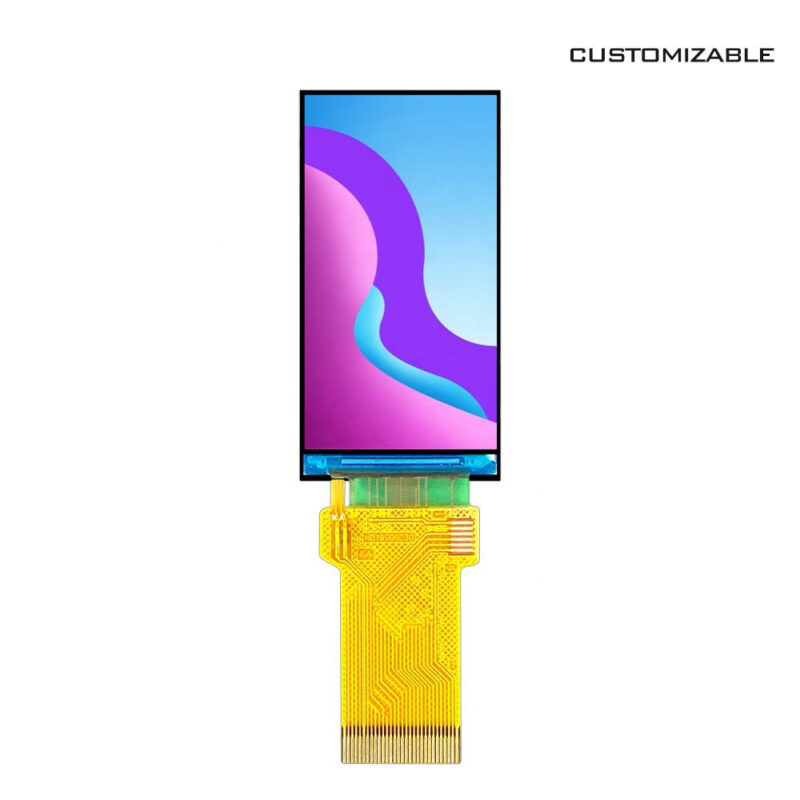

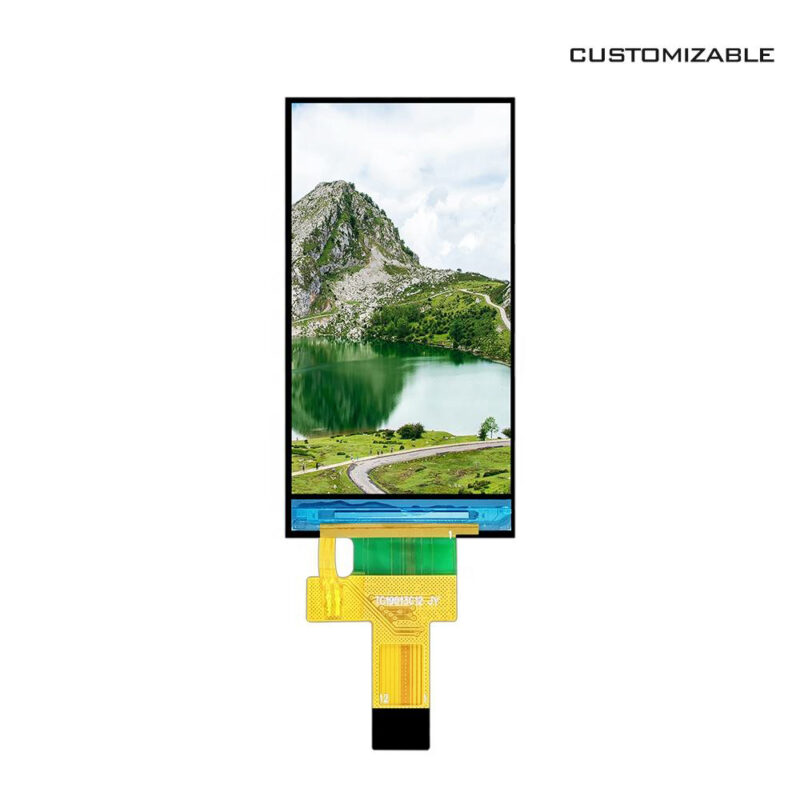

This 1.9-inch 170×320 RGB TFT LCD module is a highly versatile and customizable small-size display panel equipped with a classic ST7789 driver IC. It supports dual MIPI and SPI transmission protocols and provides multiple pin options including 12PIN, 24PIN and 30PIN to match different mainboard interfaces. With factory customizable CTP capacitive touch function, it integrates high-definition display and precise human-computer interaction. Widely applied in smart wearable devices, portable medical instruments, small industrial HMI, smart home control panels and embedded development equipment, it serves as a cost-effective and reliable display solution for small-size intelligent terminal projects.
In terms of display performance, the module features a dedicated 170×320 resolution for 1.9-inch strip screen, delivering uniform and delicate pixel arrangement and clear image presentation. Adopting standard RGB color architecture, it achieves accurate color restoration, rich layering and natural color transition, effectively solving common defects such as faint color and blurred details on miniature screens. With stable and uniform backlight output, it maintains excellent visual clarity in conventional indoor and light industrial environments, fully meeting daily high-definition display requirements.

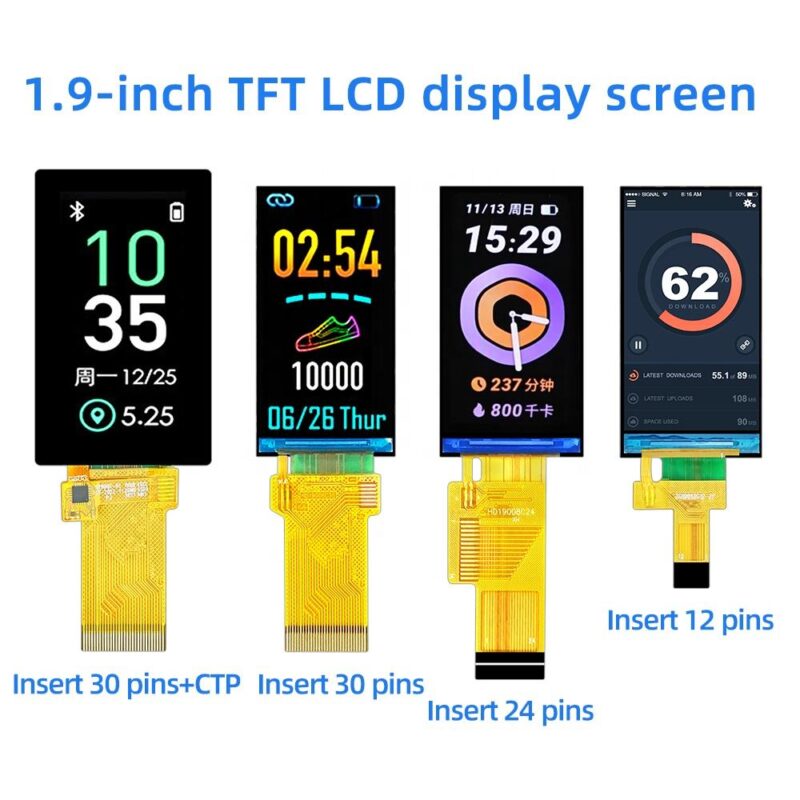

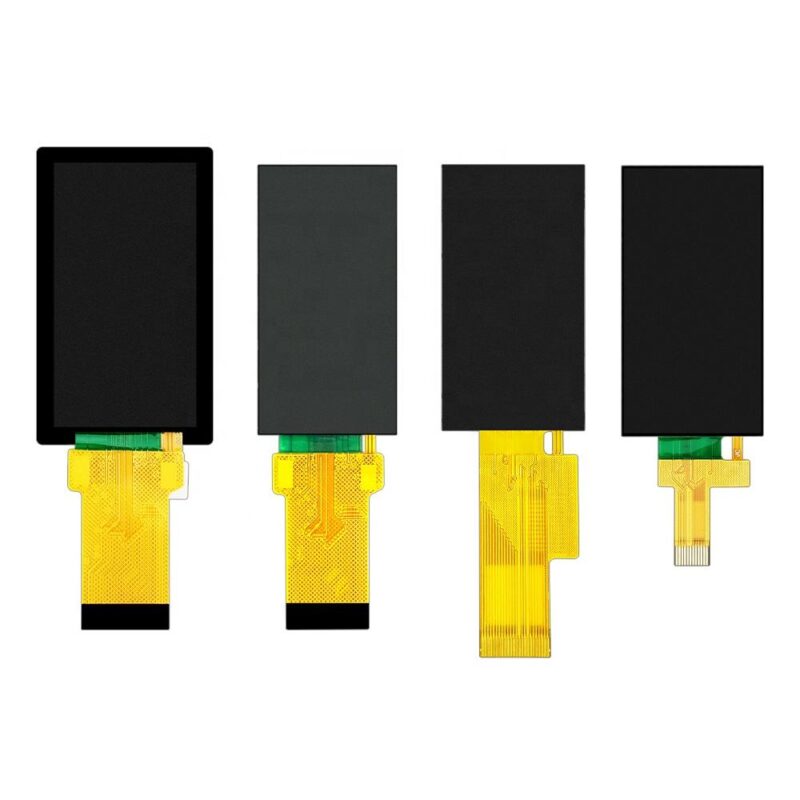

Powered by the mature industrial-grade ST7789 driver IC, the screen features fast response, low power consumption and strong anti-interference capability. It effectively avoids screen flickering, stuttering and ghosting, supporting long-term continuous stable operation. The dual MIPI and SPI interface design balances high-speed dynamic display and low-power standby performance. Multiple pin specifications of 12PIN, 24PIN and 30PIN ensure wide compatibility with mainstream embedded mainboards and single-chip microcomputers, greatly reducing secondary development and adaptation difficulties.

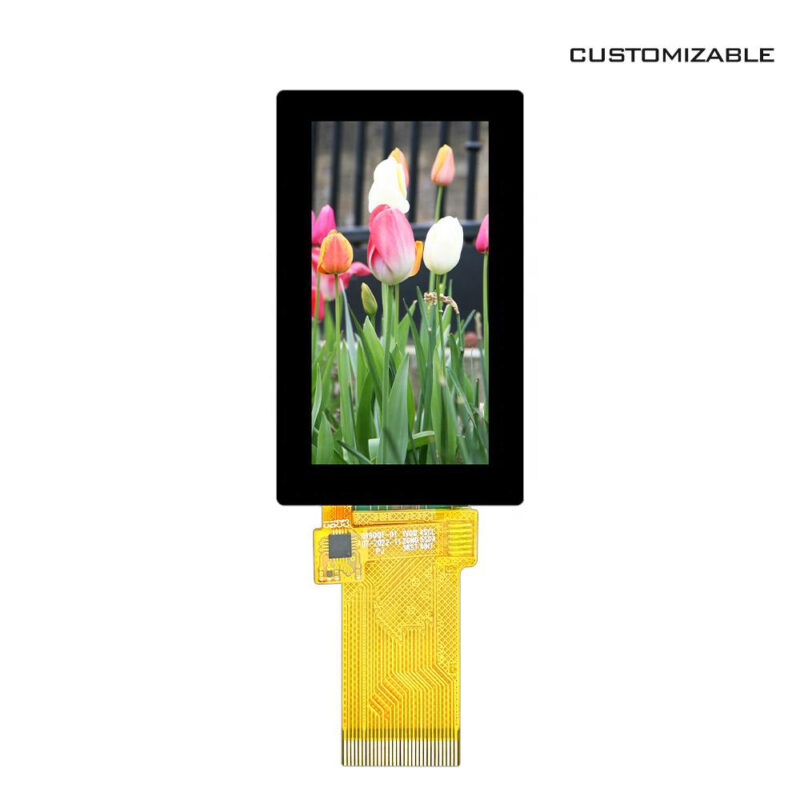

The module supports professional factory CTP customization, enabling integrated display and touch functions. The optional capacitive touch panel delivers sensitive response, accurate positioning and smooth touching experience without drift or delay, perfectly adapting to interactive intelligent device scenarios. With compact structure and exquisite craftsmanship, the module has outstanding shock resistance and aging resistance, ensuring long service life and stable performance. Its standardized structure supports multiple installation methods, facilitating flexible integration into various mini smart devices.
Each unit is individually packaged with a package size of 13×8×9cm and a gross weight of 0.5kg. The compact and well-protected package effectively prevents damage during transportation and reduces warehousing and logistics costs. It is suitable for personal R&D, prototype testing, small-batch trial production and large-scale mass production. Overall, this 1.9-inch customizable TFT LCD module with multi-pin and dual-interface design is an ideal choice for embedded display upgrading and intelligent equipment renovation.
