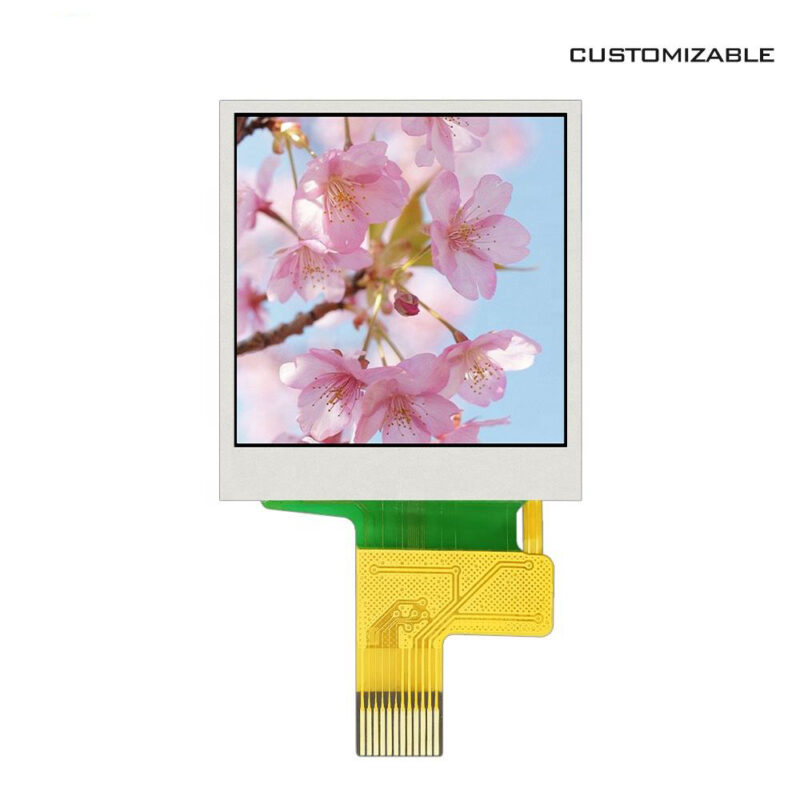

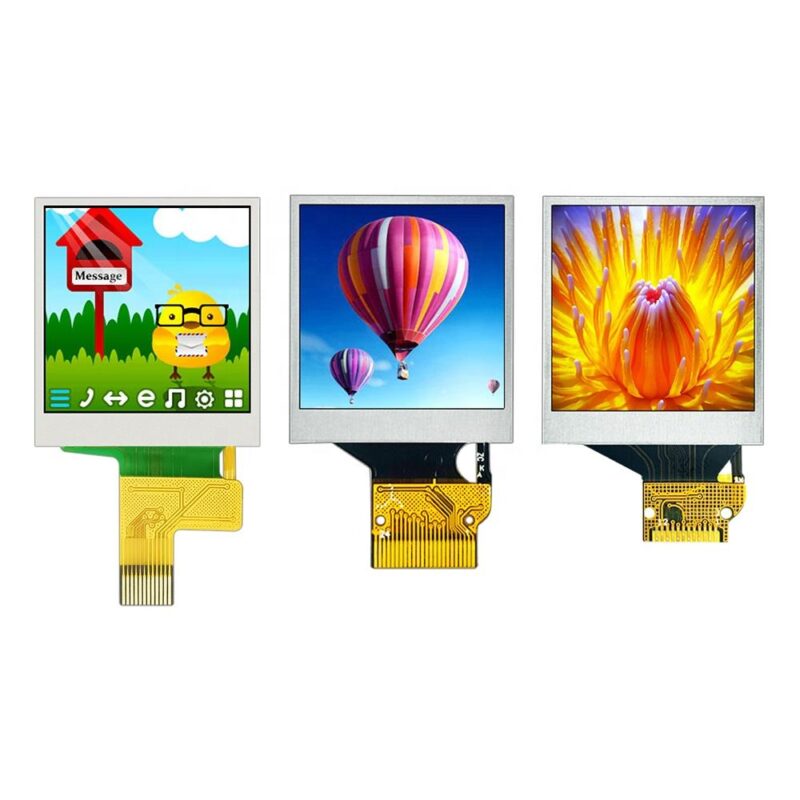

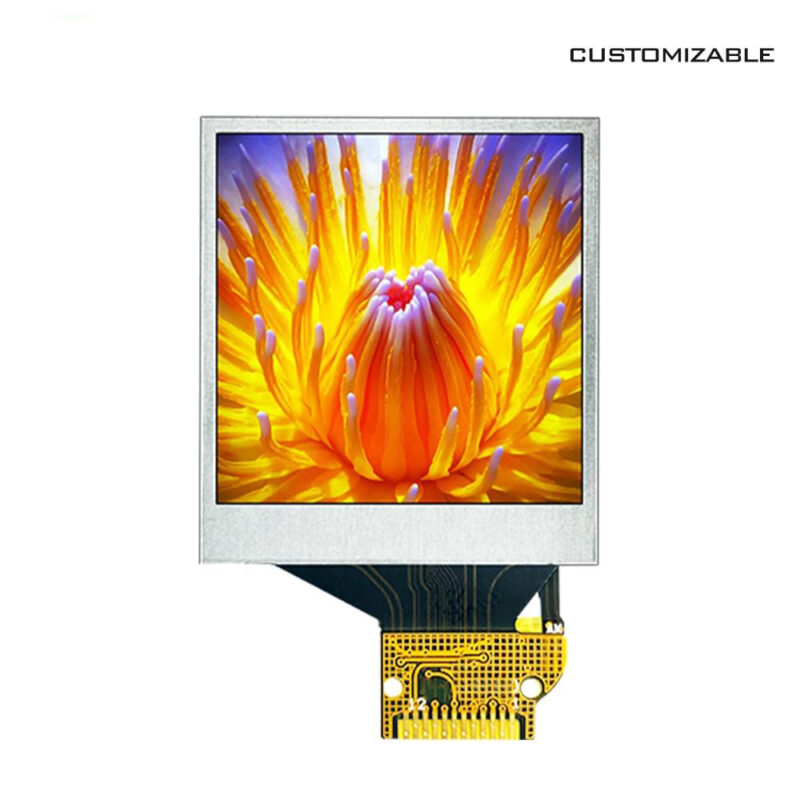

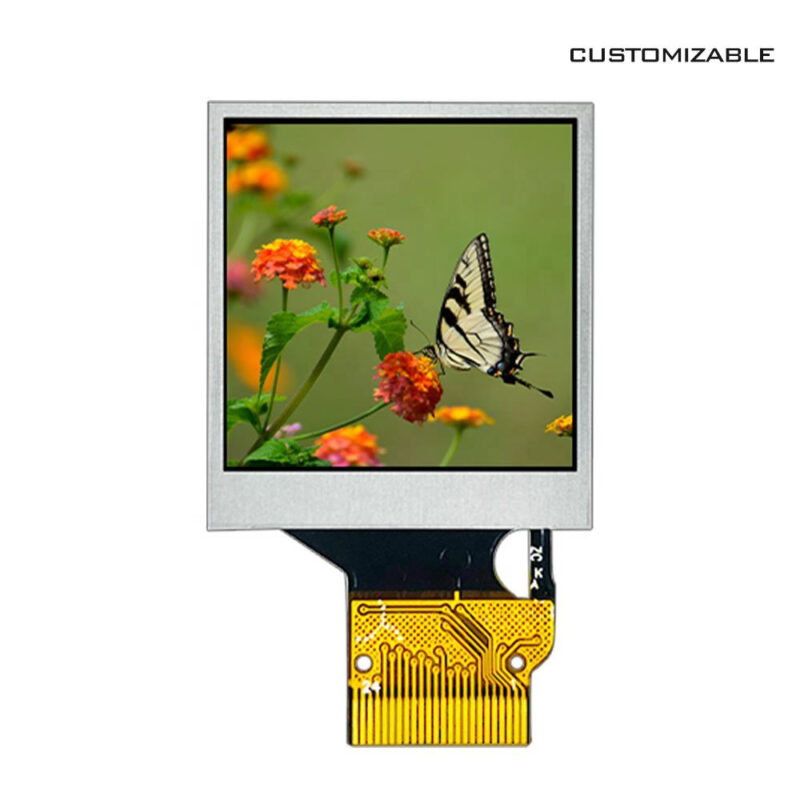

1.3 Inch 240×240 TFT LCD Display Screen ST7789T3 1224 PIN Insert Welding MIPI SPI RGB Iron Frame LCD Modules
Packaging and delivery
Selling Units
Single item
Single package size
13X8X9 cm
Single gross weight
0.5 kg
This 1.3-inch 240×240 square TFT LCD module is a high-precision micro display solution designed for miniature smart devices, embedded terminals, wearable equipment, precision instruments and lightweight industrial control products. Equipped with professional ST7789T3 driver IC and iron frame reinforcement structure, it supports MIPI, SPI and RGB multi-interface transmission and adopts 1224 pin insert welding design. With ultra-compact size, low power consumption and stable display performance, it is widely used in mini intelligent hardware development, equipment screen upgrading and embedded innovative projects, perfectly adapting to compact display scenarios with strict requirements on volume and stability.
In terms of display performance, the module features a 1.3-inch square screen with 240×240 equilateral high definition resolution. The regular and dense pixel arrangement delivers delicate and balanced display without picture stretching or distortion. It perfectly presents text characters, device icons, data waveforms and real-time status parameters with high completeness. The uniform brightness and accurate color restoration ensure excellent visual performance, fully meeting the requirements of equipment data monitoring, human-computer interaction and status visualization display.
Powered by the mature ST7789T3 dedicated driver IC, the screen achieves fast response, ultra-low power consumption and strong anti-interference capability. It effectively eliminates common defects of micro displays such as screen flicker, ghosting and stuttering, supporting long-term continuous operation. The multi-protocol compatibility of MIPI, SPI and RGB greatly expands its application scope. It can be directly connected with most single-chip microcomputers and embedded mainboards without additional adapter boards, significantly reducing development difficulty and hardware cost.

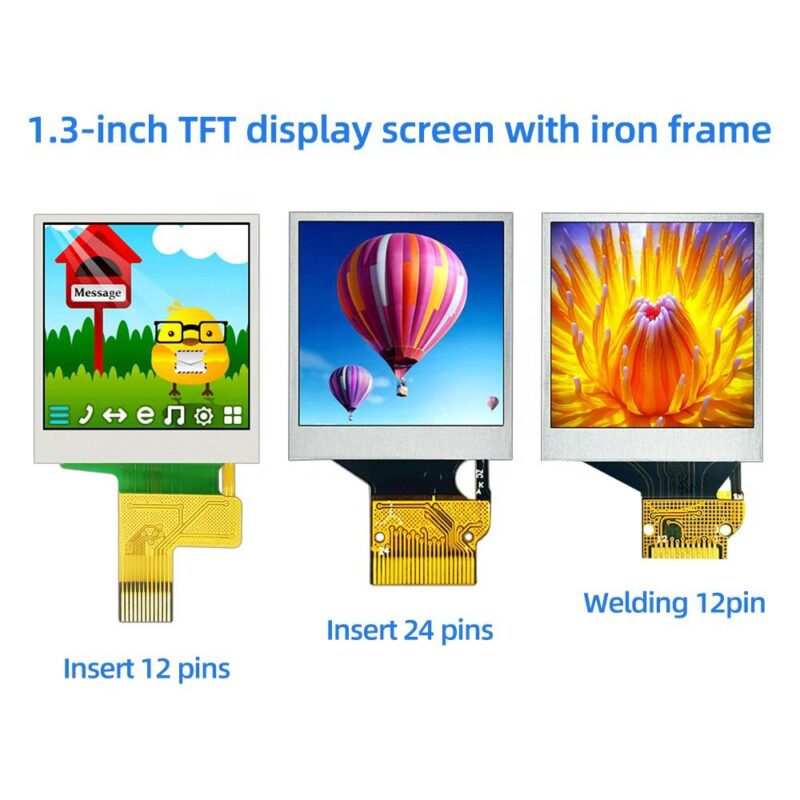

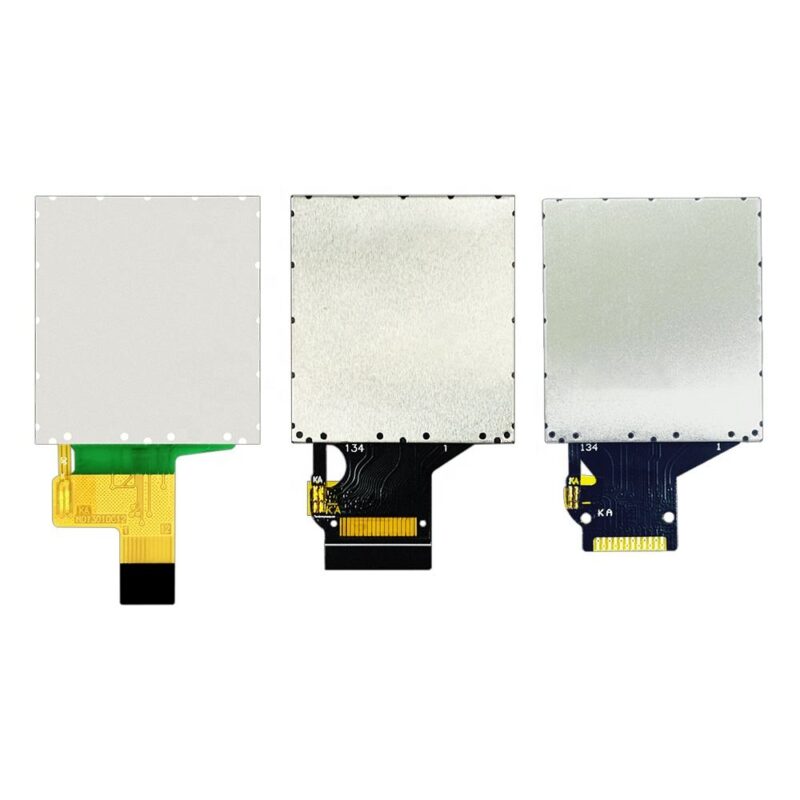

In terms of structural design, the standard 1224 insert welding pin layout ensures firm welding, stable conductivity and high assembly tolerance, suitable for both manual debugging and mass production welding. The reinforced iron frame structure improves overall flatness and compression resistance, effectively protecting the LCD panel from extrusion and deformation during assembly and daily use. The ultra-light and miniaturized body perfectly matches the lightweight design trend of wearable devices, miniature instruments and smart home micro control panels.
Each unit is individually packaged with a package size of 13×8×9 cm and a gross weight of only 0.5 kg. The compact package provides reliable protection during transportation and greatly reduces logistics and storage costs, suitable for personal research, prototype testing and batch mass production. Overall, this 1.3-inch square TFT LCD module integrates multi-interface compatibility, high-definition display, industrial stability and durable structure, serving as a highly cost-effective and versatile micro display module for embedded systems.
