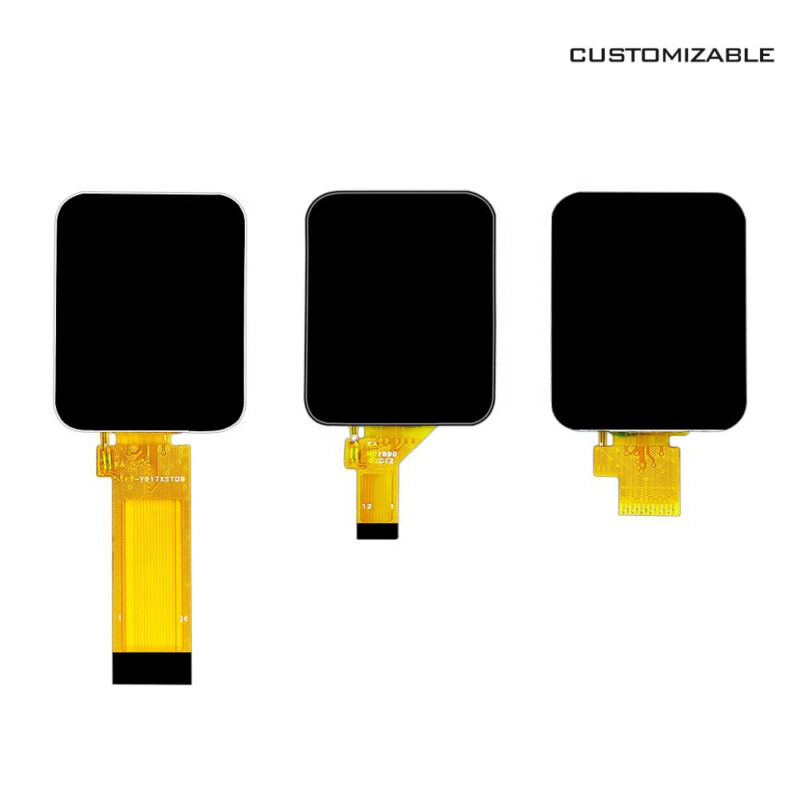

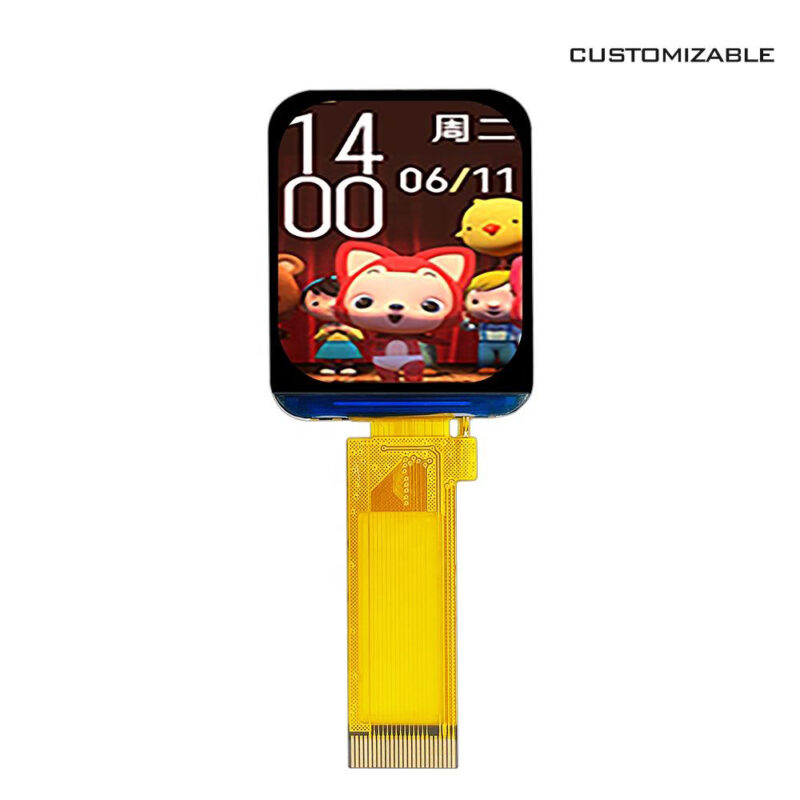

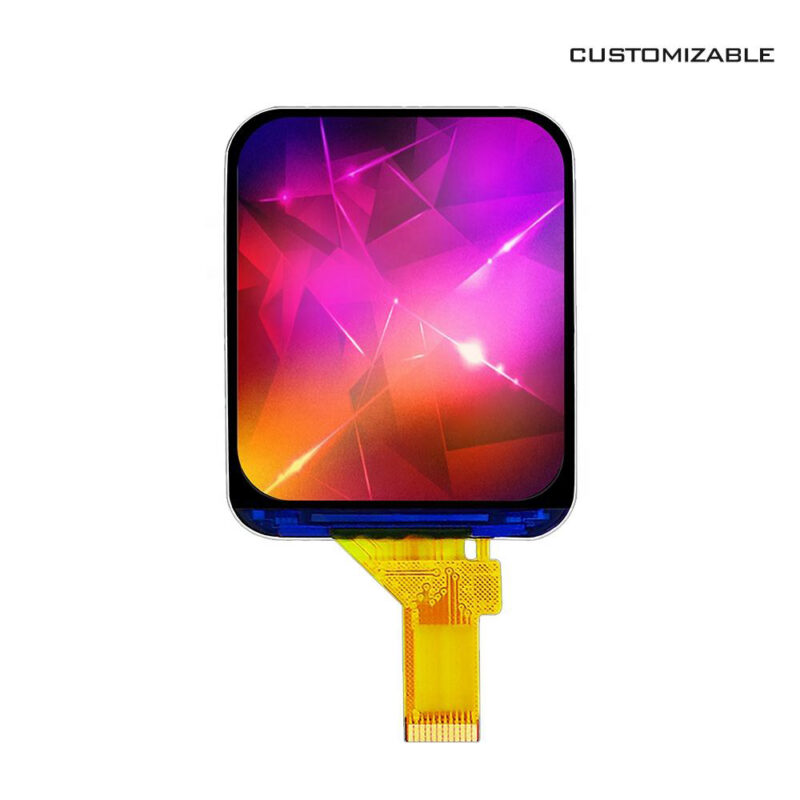

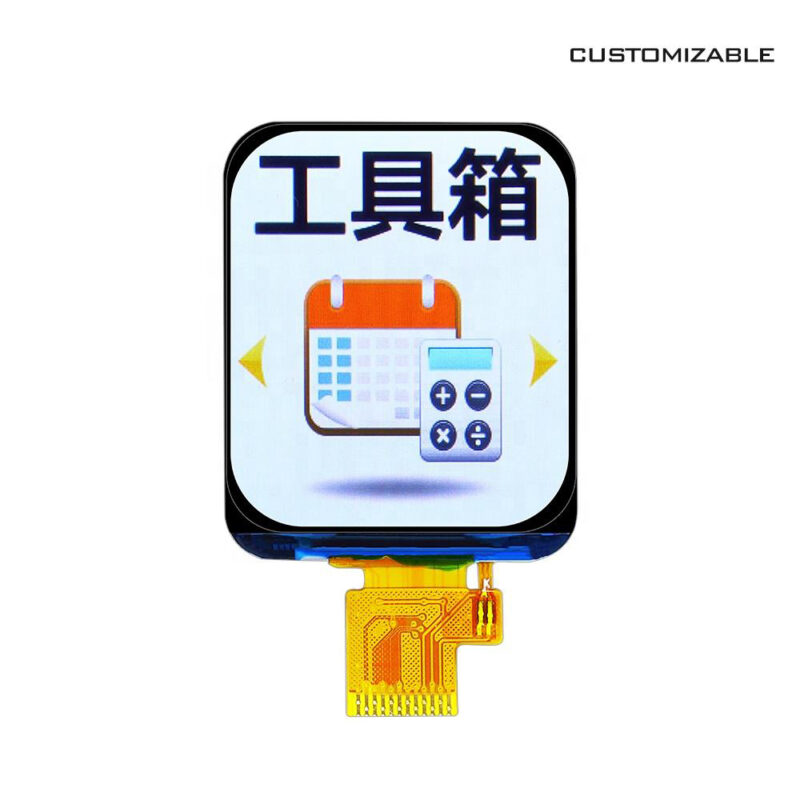

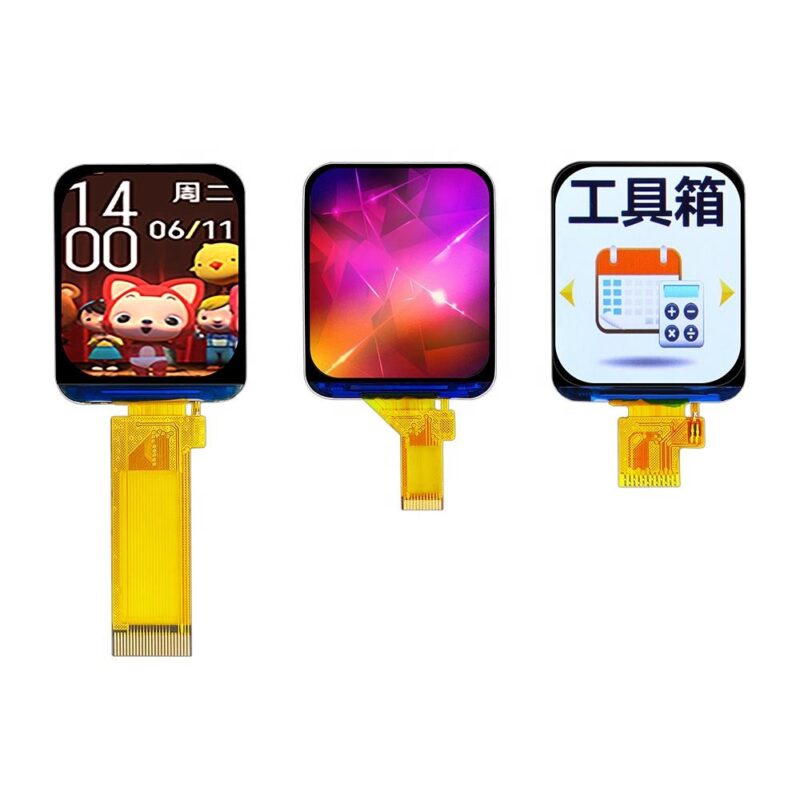

1.69 1.7 240×280 IPS Color TFT LCD Display Panel for Smart Watches 1224 Pin 240280 Lcd Screen Module with ST7789 Driver IC
Packaging and delivery
Selling Units
Single item
Single package size
13X8X9 cm
Single gross weight
0.5 kg
This 1.69/1.7-inch 240×280 IPS color TFT LCD display module is a high-quality micro display accessory specially designed for smart watches, wearable electronic devices, mini smart home terminals and portable testing instruments. Equipped with a classic and mature ST7789 driver IC and a standard 1224 pin plug-in structure, it adopts premium IPS wide viewing angle technology, delivering high-definition display, low power consumption and excellent operational stability. With universal size and strong compatibility, it is an ideal display solution for small-size wearable screen replacement, embedded micro-project development and lightweight smart hardware upgrading.
In terms of display performance, the module features a precise 240×280 physical resolution with uniform and dense pixel arrangement, presenting clear and delicate images for smart watch UI, text messages, data parameters and dynamic icons. Adopting advanced IPS full viewing angle technology, it completely solves the color shift and dark angle problems of traditional TN screens. It maintains consistent brightness and color from all perspectives without distortion, perfectly adapting to multi-angle viewing and installation of wearable devices.

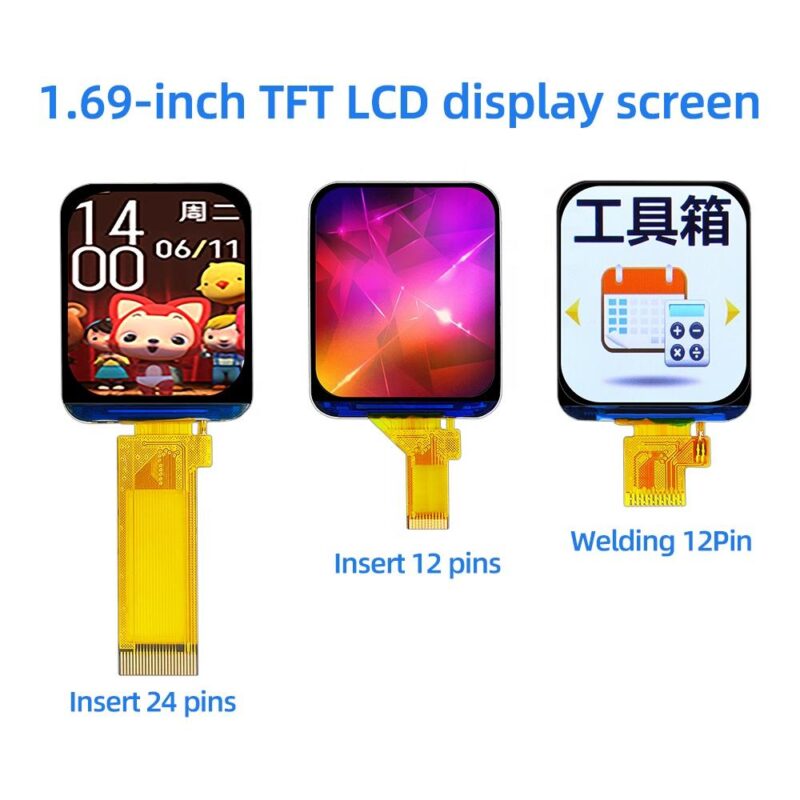

Powered by the highly stable ST7789 driver IC, the screen achieves fast response speed, ultra-low power consumption and strong anti-interference ability. It effectively avoids screen stuttering, flickering and ghosting, supporting long-term high-frequency continuous operation of wearable devices. The standardized 1224 plug-in pin design ensures firm welding and stable contact performance, suitable for manual debugging and automatic mass production, with low assembly difficulty and high yield rate.
Adopting professional TFT color imaging technology, the module delivers vivid colors, natural color transition and rich picture layers, greatly improving the visual texture of smart wearable devices. Optimized for wearable battery life, the ultra-low power consumption design effectively reduces power loss and extends equipment endurance. The compact and lightweight structure is perfectly compatible with 1.69-inch and 1.7-inch device shells, supporting fast embedded installation without complicated structural modification. With excellent aging resistance and shock resistance, it features long service life and stable performance for daily high-frequency use.
Each product is individually packaged with a package size of 13×8×9cm and a gross weight of 0.5kg. The well-protected compact package effectively prevents collision and extrusion damage during transportation, reducing warehousing and cross-border logistics costs. It is widely applicable for personal R&D, prototype testing and mass production. Overall, this 1.69/1.7-inch IPS TFT LCD module integrates wide viewing angle, low power consumption, high compatibility and stable performance, serving as a cost-effective and reliable display solution for wearable devices and embedded systems.
